| Manufacturer: | Toshiba |
| Series: | VF-S15 |
| Model: | VFS15-4015PL1-W1 |
| Application: | general purpose |
| Capacity, kW: | 1.5 |
| Current, А: | 4.1 |
| Main power supply, V: | 380-500 |
| Phase: | 3 |
| Output frequency, Hz: | 0,1-500 |
| Enclosure: | IP20 |
| Overload capacity, % per 1 min.: | 150 |
| Acceleration time, sec: | 0-3600 |
| Deceleration time, sec: | 0-3600 |
| EMC filter: | built-in |
| Braking unit: | built-in braking resistor drive circuit |
| RS485 (Modbus RTU): | + |
| PID: | + |
| V/f control mode: | + |
| Sensorless vector control: | + |
| Operation temperature, °С: | -10…..+60 |
| Storage temperature, °С: | -25…..+70 |
| Dimensions (W x H x D), mm: | 105x130x150 |
| Weight, kg: | 1,3 |

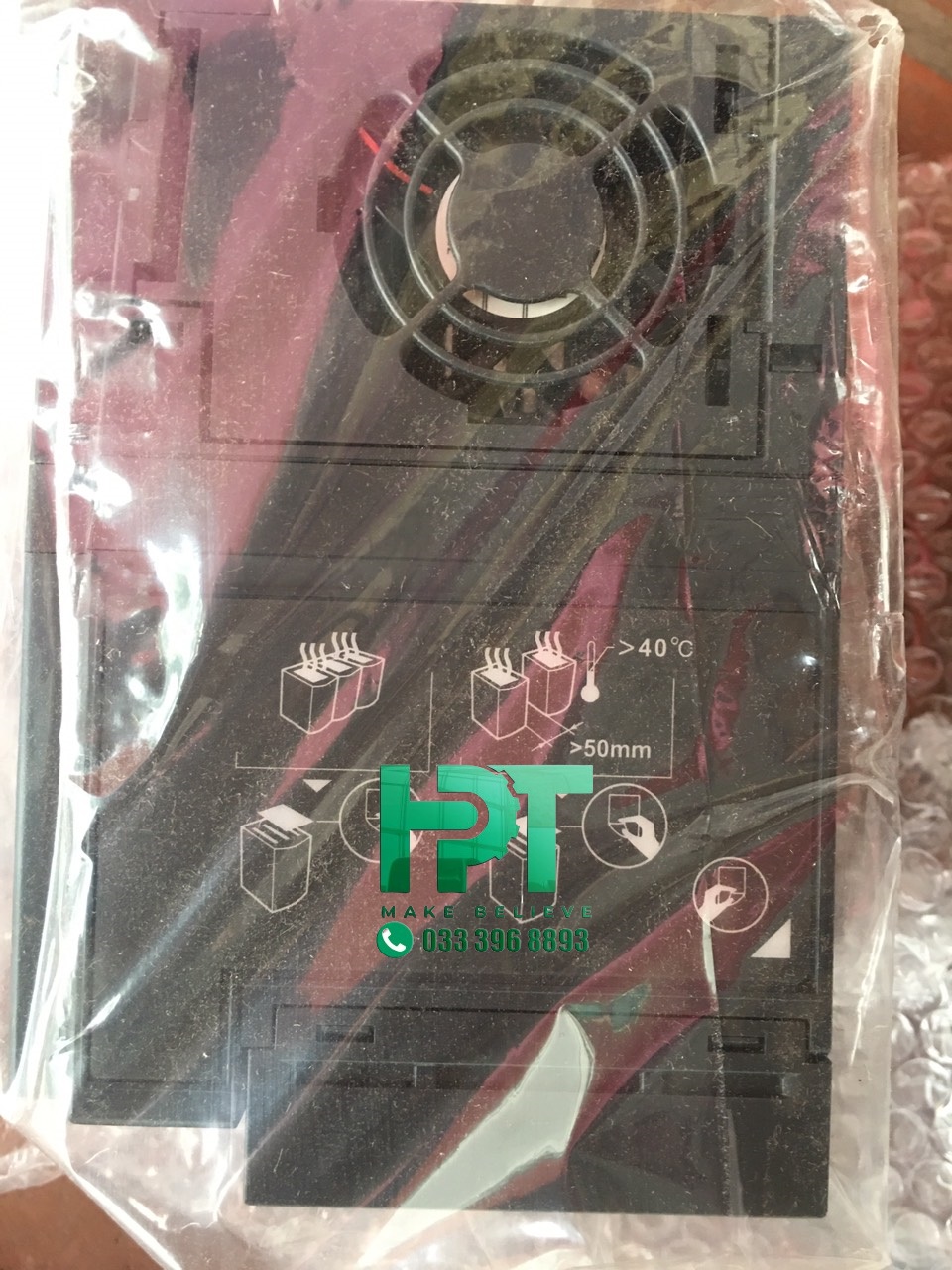

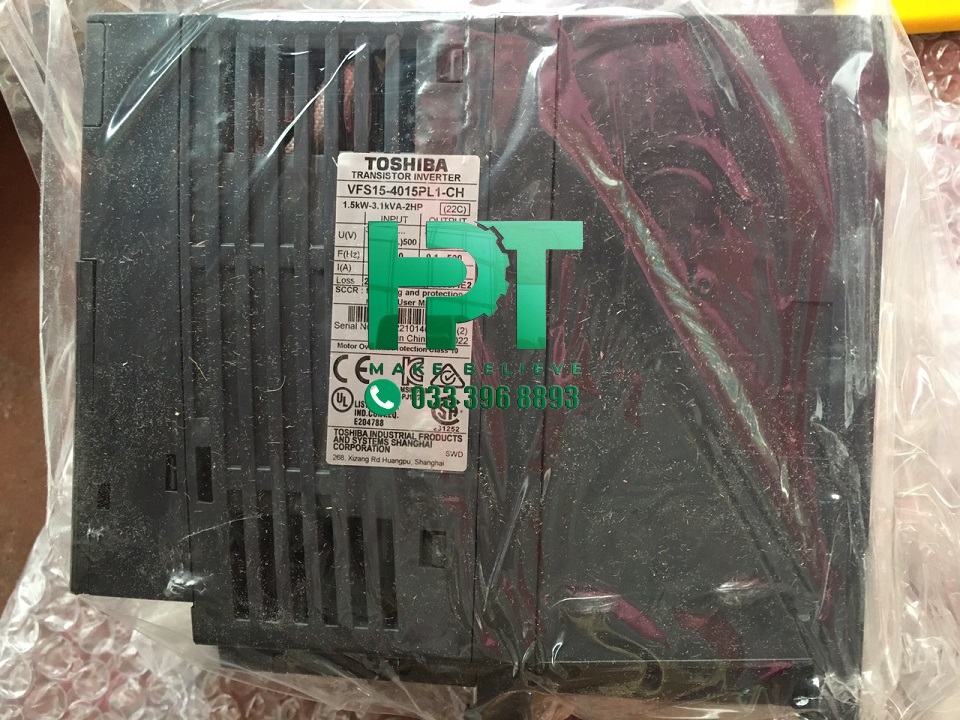

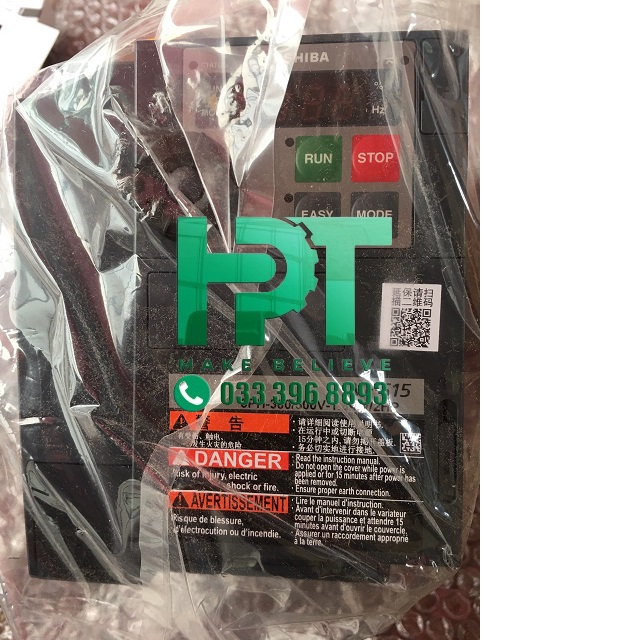

Biến tần Toshiba VFS15-4015PL1-W1 1.5kW 3 Pha 380V
