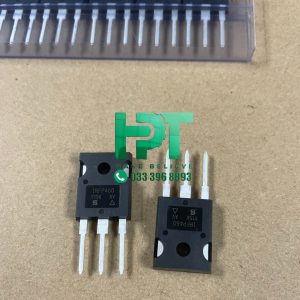

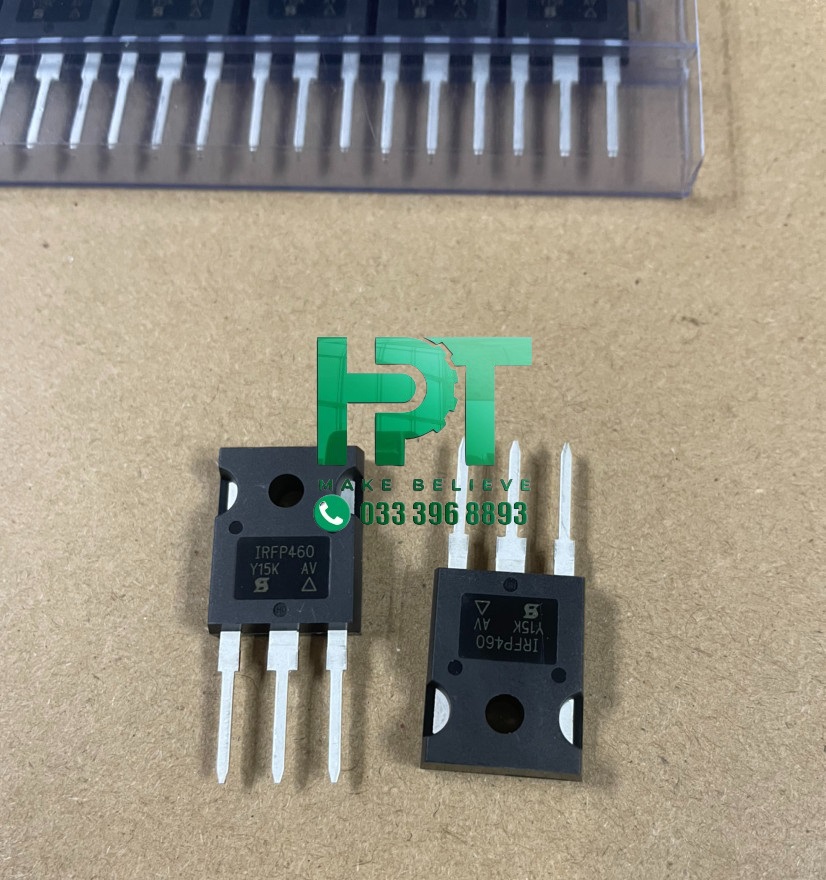

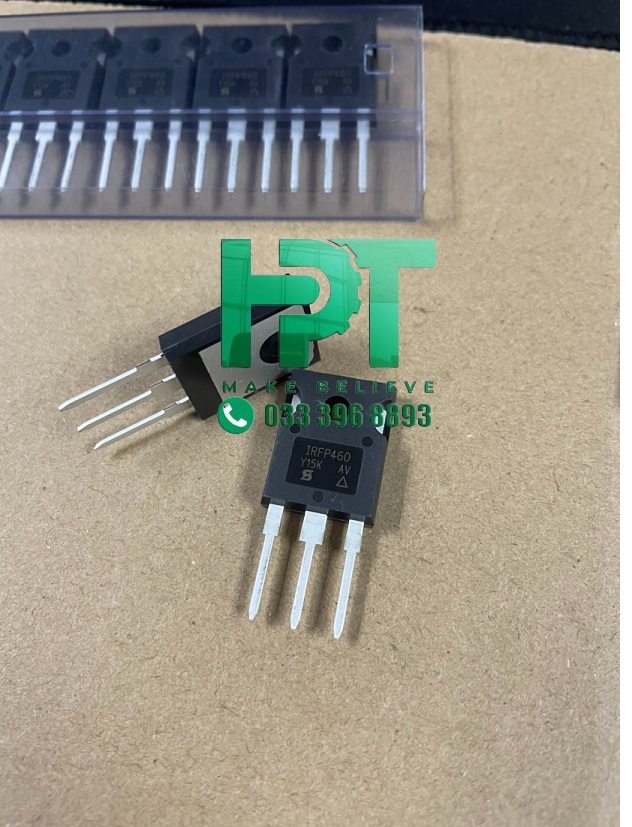

MOSFET N-CH 500V 20A TO-247AC
| Category | Discrete Semiconductor Products |
|---|---|
| Family | FETs – Single |
| Series | – |
| FET Type | MOSFET N-Channel, Metal Oxide |
| FET Feature | Standard |
| Drain to Source Voltage (Vdss) | 500V |
| Current – Continuous Drain (Id) @ 25° C | 20A |
| Rds On (Max) @ Id, Vgs | 270 mOhm @ 12A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Gate Charge (Qg) @ Vgs | 210nC @ 10V |
| Input Capacitance (Ciss) @ Vds | 4200pF @ 25V |
| Power – Max | 280W |
| Mounting Type | Through Hole |
| Package / Case | TO-247-3 |
| Supplier Device Package | TO-247-3 |
| Packaging | Tube |
| Dynamic Catalog | N-Channel Standard FETs |
| Other Names | *IRFP460PBF |
