Model explanation

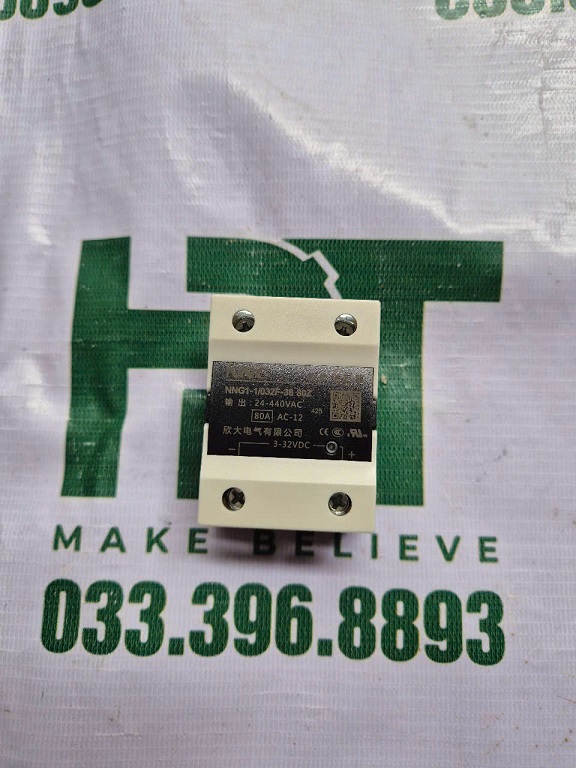

Specification of NNG1-1/032F-38 DC-AC 2A single phase solid state relay
| Control voltage | 032:3-32VDC |
| Control current | 6-35mA |
| Connected voltage | 3VDC |
| Turn off voltage | 1VDC |
| Reverse voltage | 32VDC |
| Load voltage | 22:24-240VAC 38:40-440VAC 06:12-60 VDC 11:12-110VDC 20:12-200VDC |
| Load current | 2A |
| Transient voltage | 22:220VAC 38:900VAC 06:75VDC 11:150VDC 20:220VDC |
| On-state voltage drop | AC:≤1.6VAC DC:≤1.2VDC |
| On-off time | AC:≤10mS DC:≤5mS |
| Off-state leakage current | AC:≤10mA DC:≤5mA |
| Dielectric withstand voltage | ≥1500VAC |
| Insulation resistance | Testing in 500MΩ,500VDC |
| Environmental temperature | -30℃~80℃ |
| Installation style | Dual-in-line package |
| Relay weight | ≈26g |
| Dimension | 34×26.5×18mm |
| Notice | Please install the device nearby the heat dissipation window with good ventilation |
Dimension and installation
